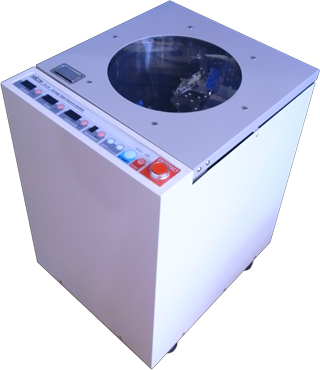

VACUUM MIXING SYSTEM (SYRINGE TYPE SY-2V)
Usage
World's First, Uniformly Stir and Defoam the phosphor, dispersing agent and encapsulant as they are in syringes. Process Shortening & Making good use of LED materials.
Feature
- ● Variable angle rotation method can get the materials of different specific gravity stirred uniformly by producing
strong up and down flow inside the container. - ● Syringe mixing system can shorten the production process, and avoid material loss, because there is no need to
transfer materials from containers into syringes. - ● Capacity : 10/30cc syringes
product specification
| Item | Specification |
| Model Name | SY-2V |
| Syringe | 5cc or 10cc x 4pcs. or 30cc x 2pcs.(selectable on request) |
| Mixing Method | Rotation variable angle method |
| Mixing Capacity | 2cc～8cc per syringe with 10cc holder |
| Adapter | 10cc (standard) |
| Rotation Speed | Revolution: 300～1000rpm / Rotation: 1/2 of revolution speed |
| Timer | Max. 9min. 59sec. / step |
| Max. Vacuum Pressure | 0.5kPa |
| Operation Settings | Max. 10 steps 8 steps (rpm・Time・Vacuum) 2 steps (Time・Vacuum) |
| Safety Functions | Door Lock sensor, Abnormal vibration sensor, Signal Tower (optional) |
| Memory Function | Allow to memorize settings. (max. 9 items) |
| Power Source | 100VAC or 220VAC 50/60Hz (selectable on request) |
| Power Consumption | 30W during standby / Max. 800W during operation |
| Outer Dimensions | 385（W）× 450（D）× 627（H） (mm) |
| Weight | Approx. 60 kg |
