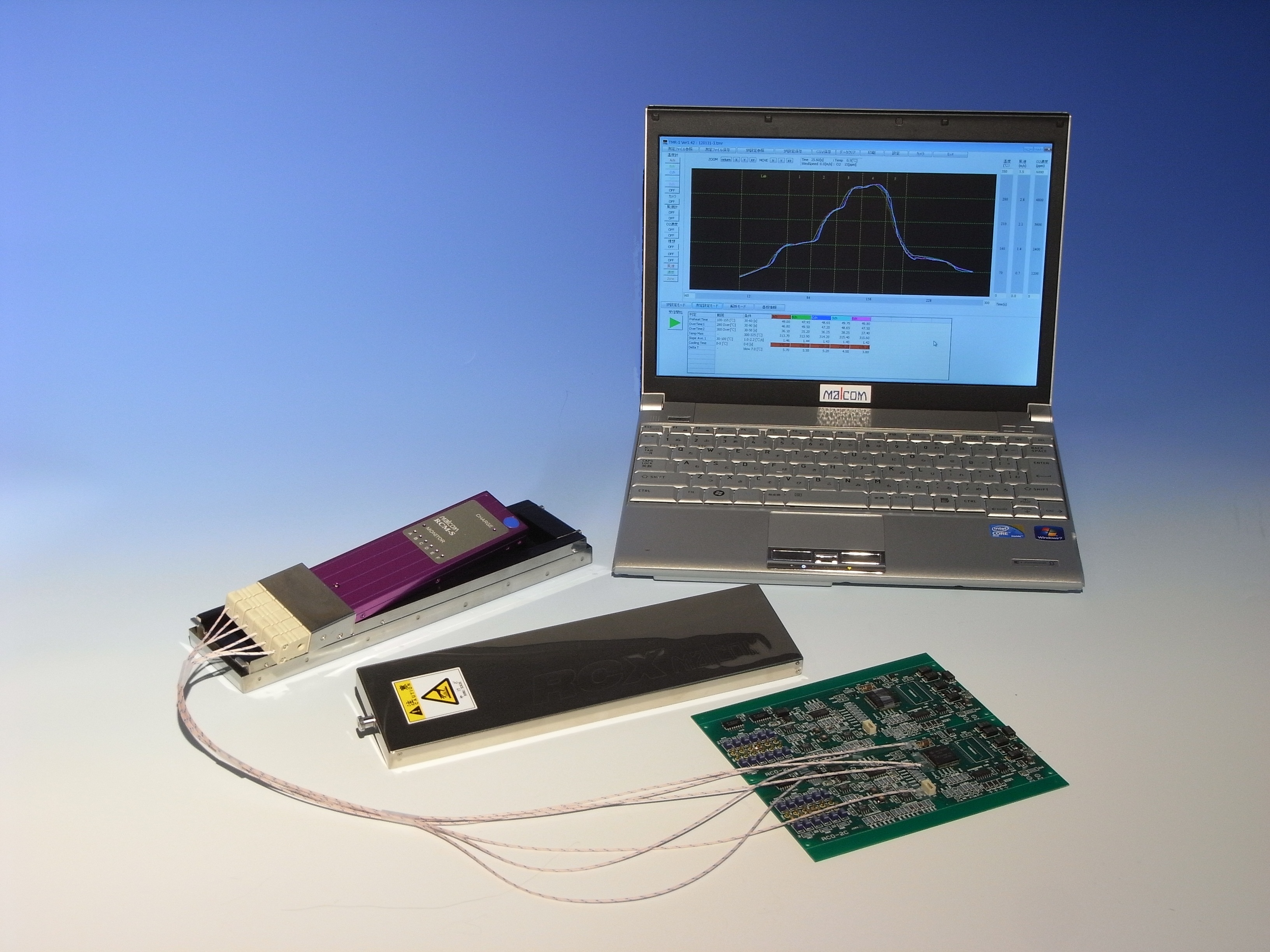

REFLOW CHECKER MEMORY UNIT (6 CHANNELS RCM-S)
Feature
- ● Temperature measured in units of the underlying system.
- ● New features such as Bluetooth, OK/NG judgment function, Thermocouple response and AAA batteries.
product specification
| Item | Specification |
| Model Name | RCX-S |
| Main Unit | RCM-S | Measuring Temp. Range | 0～500℃ *１ |
| Max Measuring Time | Approx. 10 hours * １ * ２ |
| Sampling Time (sec.) /Max. Storage Time | 0.05sec./4h50min, 0.1sec./10h40min, 0.2sec./21h20min, 0.5sec./48h20min, 1.0sec/96h40min, 2.0sec./193h20min, 4.0sec/386h40min, 8.0sec./773h20min Arbitrary setup possible |
| Temperature Accuracy | ±1℃ |
| Measuning Points | 1-6 Points |
| Heat Resistant Connector | Miniature Connector |
| Input | Thermocouple JIS-K 1kΩ max. |
| 0.1 10m | |
| Power Supply | AAA battery |
| Manganese batteries Alkaline battery Nickel-metal hydride | |
| Outer dimensions | Memory unit (w/o Heat resistant case) 55 (W) x 170 (D) x 18 (H) mm 200g |
| Heat resistant case: 65 (W) x 245 (D) x 25 (H) mm 370g | |
| Data Transmission Method | USB, Bluetooth |
| Weight | Approx. 570g (Heat resistant case and battery are included) |
- * 1 It differes from the heat resistant time of memory unit.
- * 2 It is the experimental value by AAA battery. The max. measuring time depens on battery capacity.
- * The above specifications are subject to change without notice.
Cooling Unit
| Model name | RCF-3 |
| Power supply | 100V～240V AC, (approx. 15W) 50/60Hz |
| Fan | Square 120 mm (2.9 m3 /min. Max.) 2 pcs. |
| Input gas | Rc 1/8 screw connection Air 0.5Mpa following |
| Outer dimensions | 350(W)×240(D)×160(H) (㎜) |
| Weight | Approx. 5kg |
