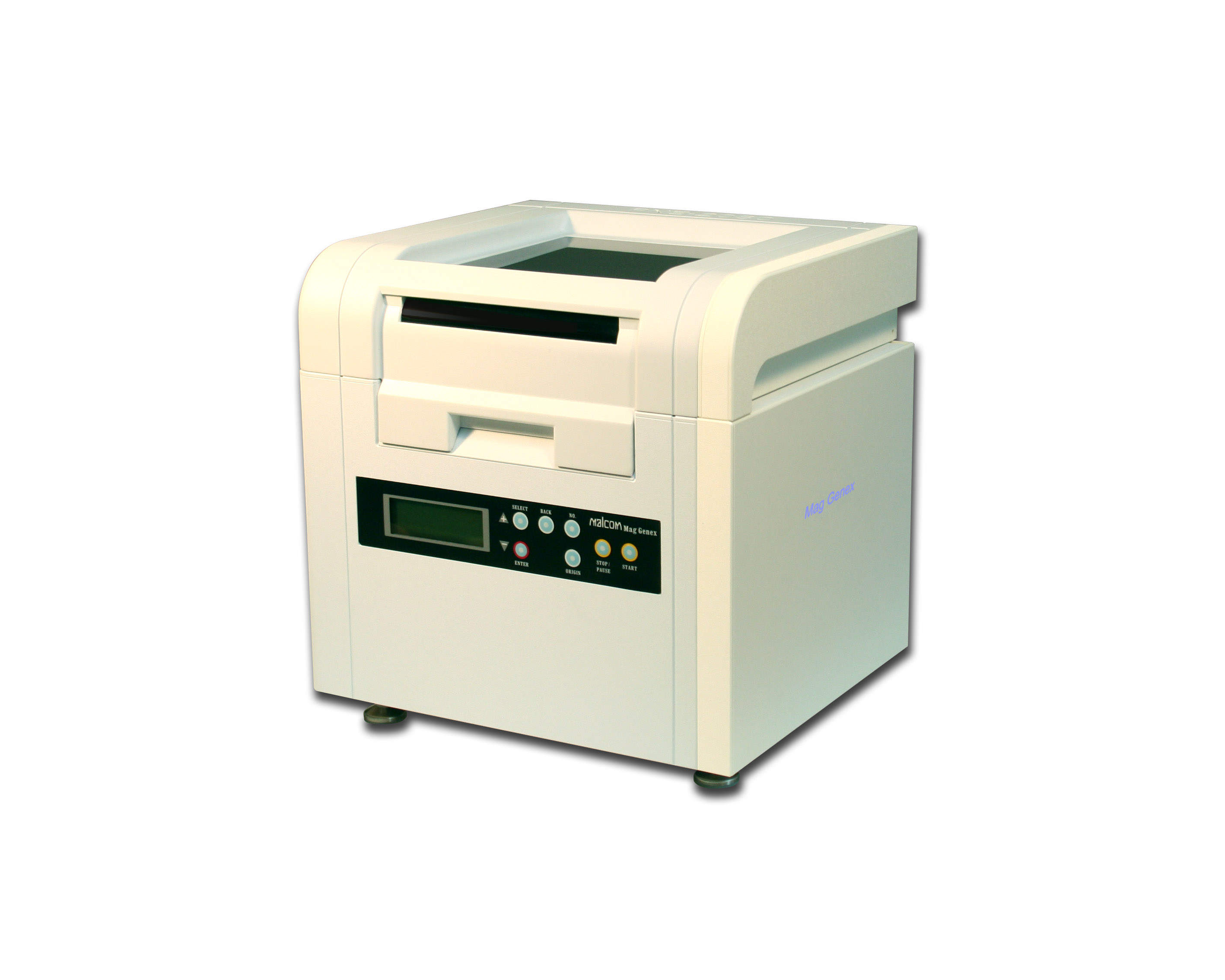

NUCLEIC ACID EXTRACTOR EQUIPPED WITH SPECTROPHOTOMETER（PNE-2080）

Nucleic acid extraction is possible from the sample of various types.

DNA RNA Extraction
Automatic concentration measurement

Feature

  • ●Performing automatic sample fracture, Nucleic acid extraction, and concentration and prurity measuremment
  • ●Maximum of 8 samples can be processed simultaneously within 25min.
  • ●Multi use （nucleic acid of various types of samples can be extracted.）
  • ●Concentration and purity measurement spectrophotometer is incorporated and concentration and purity can be
       measued at the same time.

product specification

Item Specification
Model Name PNE-2080
Equipment type Portable
Sample quantity 5 - 50μl (varies according to sample)
installed specimens Maximum 8 samples
Processing capacity Approx. 25min. / 1 - 8 samples (varies according to protocol)
Extraction protocol Genomic DNA Plant Genomic DNA Plasmid DNA Total RNA Viral RNA mRNA
Software Control by selection buttons
Nucleic acid analysis The concentration and purity of dsDNA, RNA and oligonucleotide can be read directly by the selection button.
Power Supply AC100～240V 50/60Hz
Power Consumption 70W
Outer Dimension 340(W) x 295(D) x 340(H) (mm)
Weight Approx. 15kg
  • * The above specifications are subject to change without notice.

---Extraction kit---

Applicable sample
Product name Package Whole Blood Animal cell Plant E. coli Yeast Viral
Animal organization Lactobacillus
Genomic DNA kit 96 tests ○ ◎ △ ◎ ○
Plant Genomic DNA kit 96 tests △ △ ○ △ △
Plasmid DNA kit 96 tests ○
Total RNA kit 96 tests ◎ ○ ◎ ○
Viral RNA kit 96 tests ○
mRNA kit 96 tests This products is a kit that refines mRNA{poly(A)＋RNA} from total RNA
◎ : no preprocessing ･･･High purity and a high density nucleic acid are obtained. ○ : no preprocessing ･･･Nucleic acid are obtained. reprocessing ･･･High purity and a high density nucleic acid are obtained. △ : no preprocessing ･･･Nucleic acid are not obtained. preprocessing ･･･Nucleic acid are obtained. Space : Nucleic acid are not obtained.
