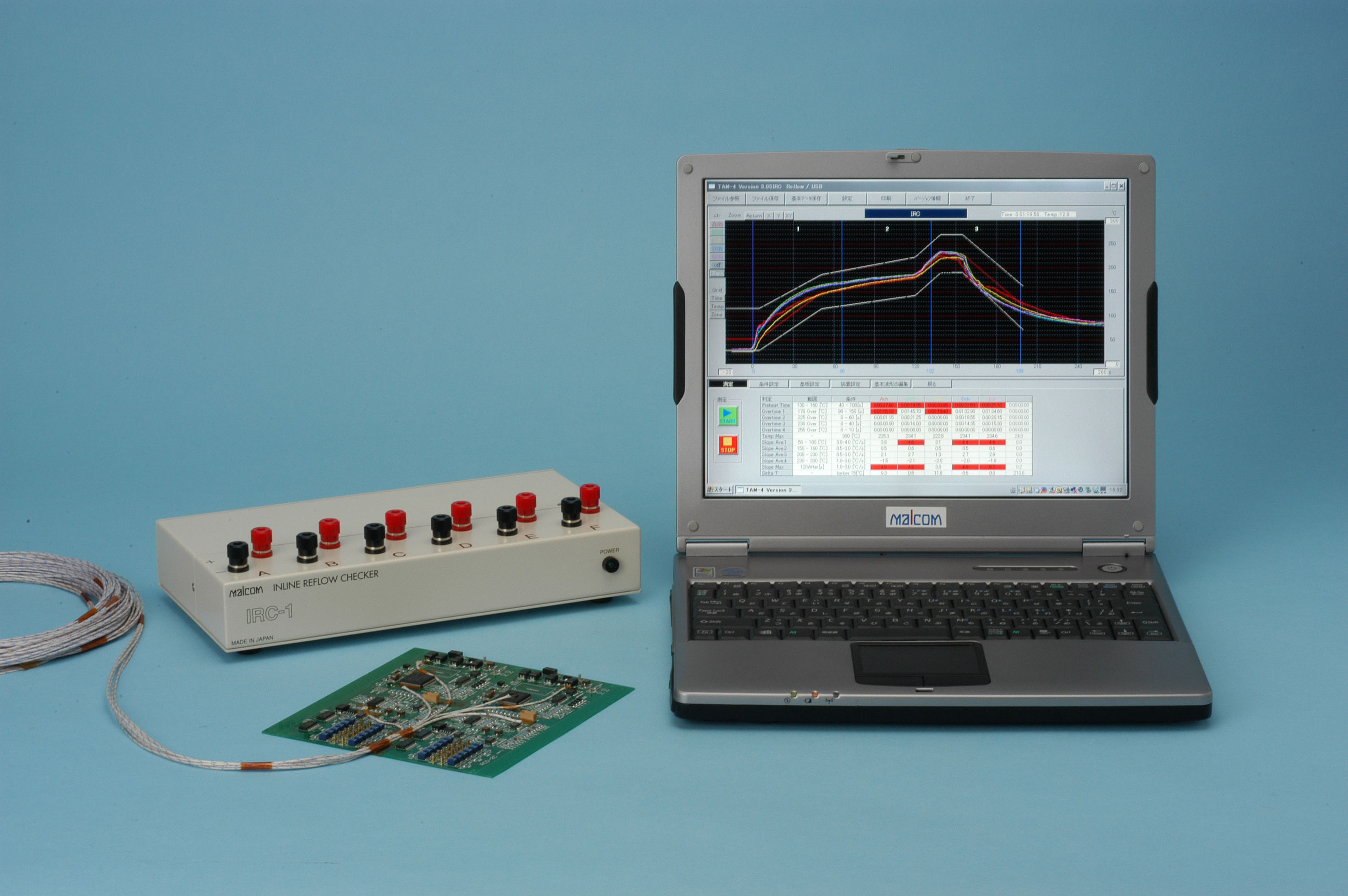

REAL-TIME REFLOW CHECKER(IRC-1)
PC via a USB connection and the body is high-performance, high-precision temperature control system can be measured in real time to the temperature profile.
REAL TIME MONITOR
Low-price
PC via a USB connection and the body is high-performance, high-precision temperature control system can be measured in real time to the temperature profile.
Feature
- ● You can set the temperature of the reflow oven speedily.
- ● Temperature control conditions can be determined automatically, manual analysis is possible.
- ● Measurement data can be converted CSV, you can create any report.
product specification
| Item | Specification |
| Model Name | IRC-1 |
| Measuring Temp. Range | 0 - 300C (resolution : 0.1C) |
| Max Measuring Time | 60 min. |
| Sampling Time | 0.1, 0.2, 0.5, 1.0, 2.0, 4.0 & 8.0 sec. |
| Temp. Accuracy | +/-2C |
| Measuring Points | 1 - 6 points |
| Input | Thermocouple JIS-K 1000Ω max. (equivalent to φ0.1mm 8m) |
| Power Supply | AC100V - 240V 50/60Hz
(Use the same ground as that of the reflow furnace) |
| Outer Dimension | 250(D) x 130(L) x 55.2(H)(mm) (Terminal part : 15.2mm) |
| Weight | Approx.1.4kg |
| Reflow Profile Analysis Software | TAM-4IRC for Windows XP/2000 |
- * Measurement accuracy excluding thrmocouple tolerance.
- * The above specifications are subject to change without notice.
