DISCONTINUED

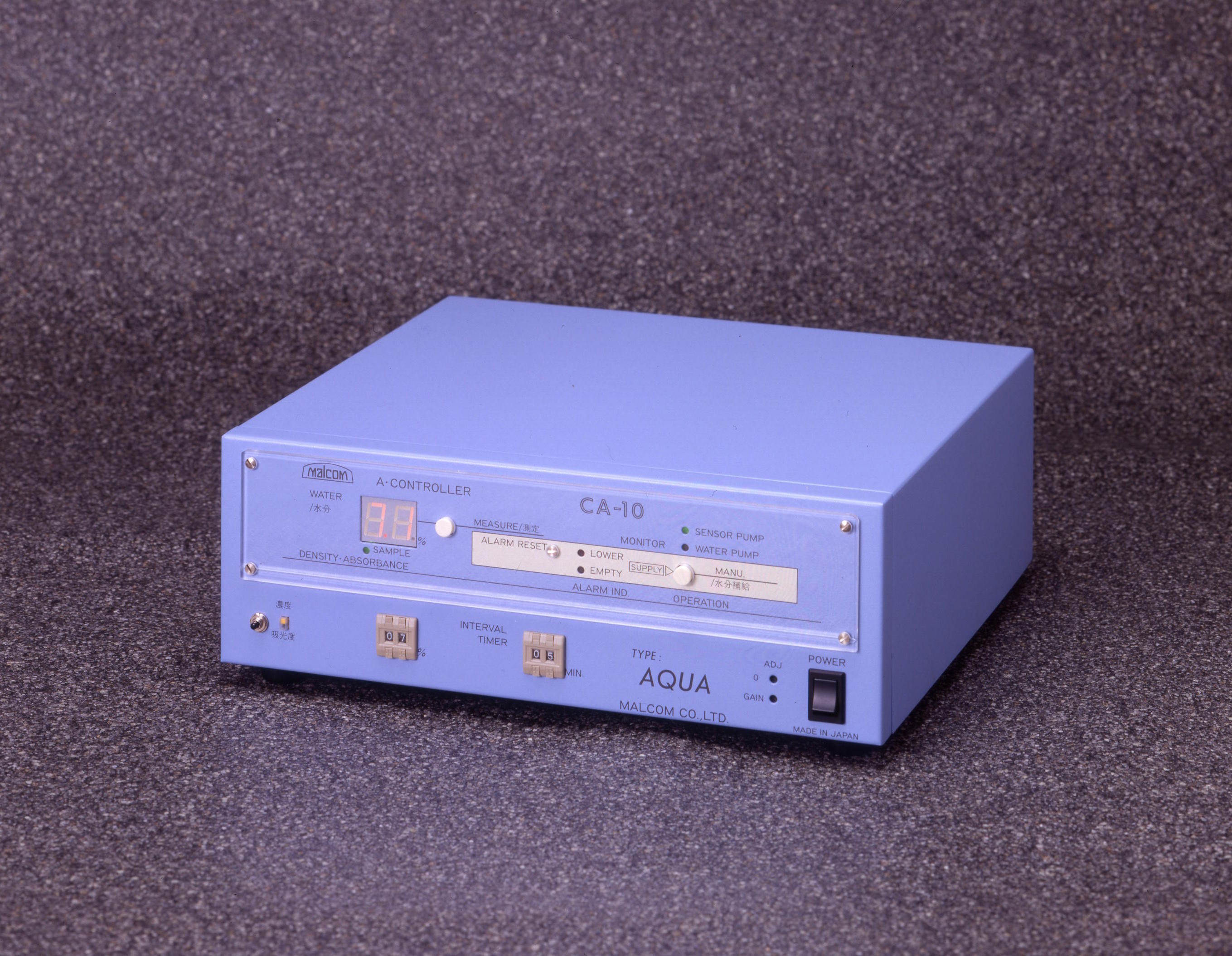

CLEANSING LIQUID CONTROLLER（CA-10A）
Usage
The continuous monitoring of moisture, such as cleaning equipment.
Feature
- ●Moisture measurement, in-line type.
- ●Built in water supply pump.
- ●Output for moisture control, alarm, and recorder.
product specification
| Item | Specification | |
| Model Name | CA-10A | |
| Measurement Principle | Infared Absorption | |
| Range | Moisture: 0 - 15% | |
| Accuracy | +/-0.8 | |
| Measurement Method | Auto & Manual measurement Rate: 0.4 LPM Head:1m (Diaphragm pump) Rate: 0.6 LPM Head:1m (Geared pump) | |
| Measurement Timer | Interval 1min ～ 99min | |
| Water Supply Pump | Internal water pump (Rate: 0.4 LPM 1m) | |
| Water Supply Timer | User specified with a dip switch on the back of the controller. (1～45sec or 1～45min) | |
| Tube Fitting | 1/8PT 8(outside dia)× 6(inside dia) Nylon (teflon) tube | |
| Output | * Moisture Management | Water pump is in use. Output terminal CD |
| * Warning | Over Limit Output Terminal EF / Buzzer Add to liquid level Output Terminal GH / Buzzer / Empty Lamp New liquid level Output Terminal GH / Buzzer / Empty Lamp | |
| Recorder Output | Analog 1～5V (0%：1V 20%：5V) Digital RS232C (1200B, 8C, 1S, NP) | |
| Input | Water replenishment control | Coupler & relay input terminal. |
| Measurement Permission | Coupler & relay input terminal. | |
| Air Purge | 0.1MPa (1kg/cm2) Dryer | |
| Power Supply | AC100V±10％ 50／60Hz 2A | |
| Outer Dimension | Cotroller： 290(W)×260(D)×108(H)（mm） Sensor： 263(W)×294(D)×270(H)（mm） | |
| Weight | 12kg (controller & sensor) | |
- * The external output terminal becomes an output terminal (AC100V 1A).
- * The above specifications are subject to change without notice.
