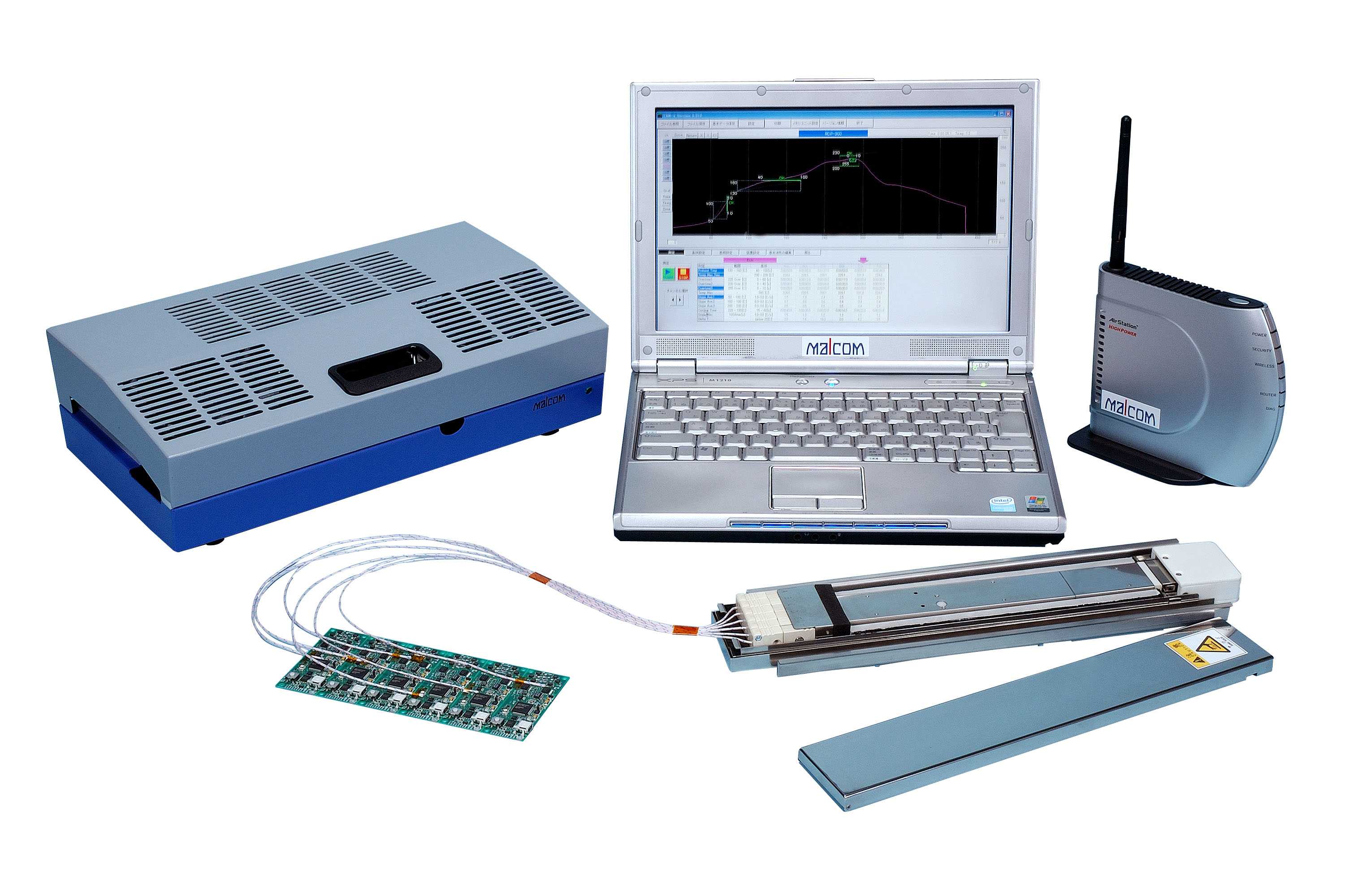

REFLOW CHECKER - WIRELESS LAN CONNECTION（RCR-60）
DISCONTINUED
REFLOW CHECKER - WIRELESS LAN CONNECTION（RCR-60）
Usage
Follows a wireless LAN standard, and displays temperature profiles in real-time.
product specification
| Item | Specification |
| Model Name | RCR-60 |
| Memory unit model name | RCR-06 |
| Measuring Temp. Range | 0-500℃ |
| Max. Measuring Time | Approx. 60min |
| Sampling Time | 0.05, 0.1, 0.2, 0.5, 1.0, 2.0, 4.0 & 8.0 sec. (Arbitrary set up possible) |
| Temperature Accuracy | ±1℃ |
| Measuning Points | 1-6 Points |
| Heat Resistant Connector | Miniature Connector |
| Input | Thermocouple JIS-K 110Ω max. |
| Power Supply | Lithium ion battery (from Mini USB-B port of Memory Unit) |
| Outer Dimension | 52(W)×337(D)×19(H)（mm） |
| Weight | Approx.700g |
| Data Transmission Method | Wireless LAN/USB LAN (IEEE802.11b/11g) |
| Conveyor Attachment Changeable width | Changeable width 65-130mm (standard) |
- * The measurement precision includes neither the error of the thermo-couple nor the error of the standard point
of contact temperature. - * The range of the measurement temperature and the maximum measurement time do not considered the heatproof
time,and no time that can be measured in the reflow furnace. - * The above specifications are subject to change without notice.
Cooling Unit
| Item | Specification |
| Model name | RCF-3 |
| Power supply | 100V～240V AC, (approx. 15W) 50/60Hz |
| Fan | Square 120 mm (2.9 m3 /min. Max.) 2 pcs. |
| Input gas | Rc 1/8 screw connection Air 0.5Mpa following |
| Outer dimensions | 350(W)×240(D)×160(H) (㎜) |
| Weight | Approx. 5kg |
